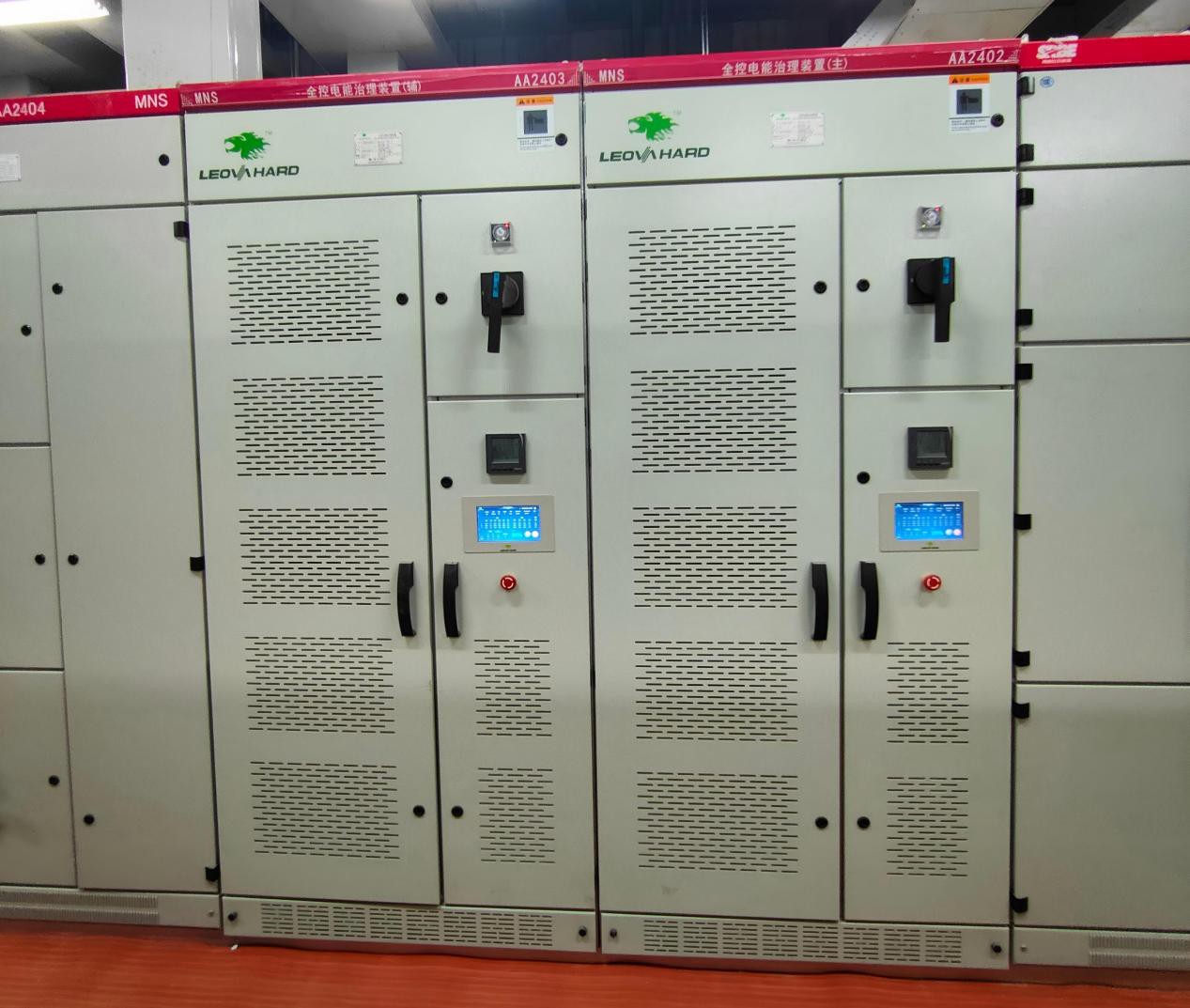

Functional Applications and Principles of Low-Voltage Static Var Generators

A low-voltage static var generator (SVG) is a power system device whose main function is to dynamically adjust the reactive power of the power grid to improve the power factor, stability, and power quality. This device, controlled electronically, can quickly respond to grid demands and provide necessary reactive power support.

1. Dynamic Reactive Power Compensation

The core function of a low-voltage static var generator (SVR) is to dynamically compensate for reactive power in the power grid. It can adjust its output in real time according to the actual needs of the grid to achieve reactive power balance.

2. Improved Power Factor

By compensating for reactive power, SVG helps improve the power factor of the power grid. This not only reduces line losses but also improves the grid's transmission efficiency.

3. Enhanced Grid Stability

Grids may encounter voltage fluctuations and frequency instability during operation. SVG helps stabilize grid voltage and frequency by providing necessary reactive power support.

4. Improved Power Quality

The quality of power directly affects the safety of the power system and the user's electricity experience. SVG improves power quality by reducing voltage fluctuations and harmonics.

The working principle of a low-voltage static var generator is based on modern power electronics technology. It uses power electronic devices such as IGBTs or IGCTs to control the phase and magnitude of the current to generate the required reactive power.

1. Power Electronic Conversion

SVG uses a power electronic converter to convert active power in the power grid into reactive power, or vice versa, to achieve reactive power compensation.

2. Real-time Control

SVG is equipped with advanced control algorithms that can monitor the power grid status in real time and adjust the output as needed to achieve optimal reactive power compensation.

As a highly efficient power regulation device, the low-voltage static var generator (SVG) plays a vital role in improving power grid stability and power quality. With technological advancements and the expansion of its application areas, SVG is expected to play an even more crucial role in future power systems.
